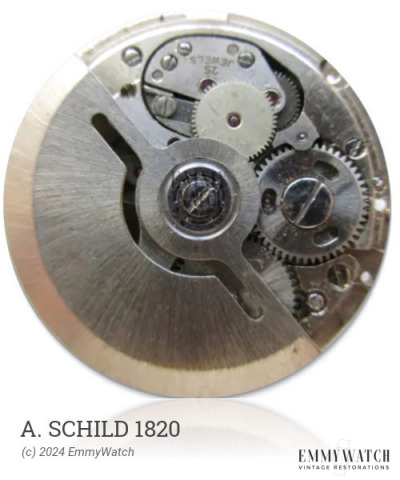

A. Schild 1820
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 46 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1969-1978
Diameter: 26 mm
Height: 5.2 mm
Hands: 1.50 x 0.90 x 0.21 mm
The A. Schild 1820 is a mechanical watch movement that was used from 1969 to 1978. It features an indirectly driven minute hand, which allows for a large balance and low-profile design. The movement includes the following functions: automatic winding, sweep seconds, and a quickset date feature.
The A. Schild 1820 features the following functions:
- Automatic Winding
- Date: quickset
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.115 x 360 x 13.5 mm | Auto | Buy mainspring | |
| 1.45 x 0.110 x 380 x 10.5 mm | GR3986X | Auto | Buy mainspring |
| 1.45 x 0.115 x 360 x 10.5 mm | GR39981X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
