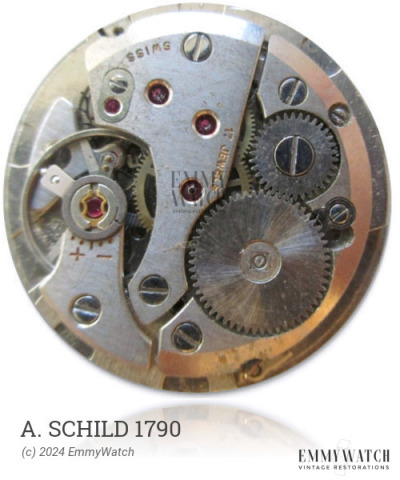

A. Schild 1790
(AS, A Schild)
Ligne: 5.75 x 8.5'''
Jewels: 15/17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.85 x 19.55 mm
Height: 3.7 mm
Hands: 1.00 x 0.55 mm
The A. Schild 1790 is a mechanical watch movement with a manual winding function. It was produced around the year 1945. Further details regarding its specific features or differences from other A. Schild movements are not known.
The A. Schild 1790 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.075 x 280 x 7.5 mm | GR4069 | Manual | Buy mainspring |
| 1.50 x 0.075 x 260 x 7.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.080 x 240 x 7.0 mm | GR4076 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
