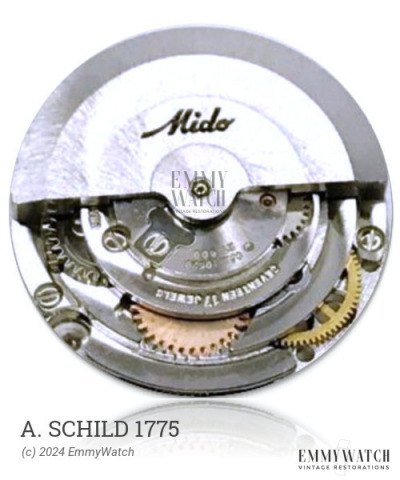

A. Schild 1775
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1964-
Diameter: 26 mm
Height: 4.1 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: A. Schild 1714
The A. Schild 1775 watch movement, introduced in 1964, features an automatic mechanism and a sweep second function. It is characterized by an indirectly driven minute hand, which enables a large balance and a low profile. Additionally, this movement incorporates a ball-bearing rotor.
The A. Schild 1775 features the following functions:
- Automatic Winding
- Ball-bearing Rotor
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.115 x 360 x 11.0 mm | GR2465X | Auto | Buy mainspring |
| 1.00 x 0.118 x 320 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
