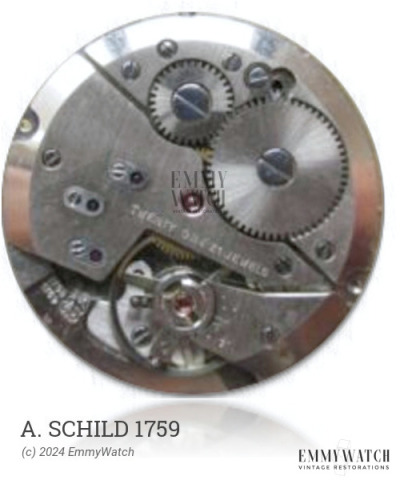

A. Schild 1759
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1972-1979
Diameter: 26 mm
Height: 3.7 mm
Hands: 1.50 x 0.90 x 0.21 mm
The A. Schild 1759 watch movement, manufactured from 1972 to 1979, offered optional plastic bushings instead of dial screws. It was a manual wind movement equipped with a date function that could be quickset by repeated pushing of the crown.
The A. Schild 1759 features the following functions:
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.105 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
