A. Schild 1711
(AS, A Schild)
Ligne: 6.75 x 8'''
Jewels: 17/21
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1947-1951
Size: 15.3 x 18.2 mm
Height: 3.45 mm
Hands: 1.10 x 0.60 mm

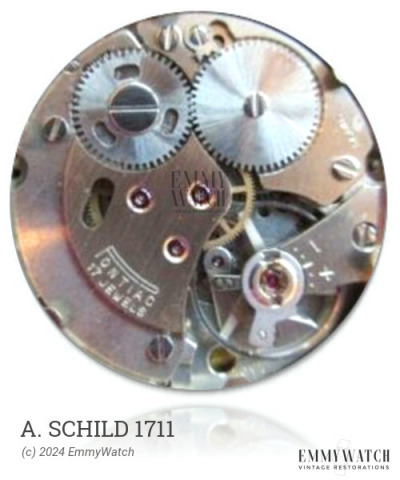

The A. Schild 1711 watch movement, along with its variants 6BC and 6BE, is a manual wind, mechanical movement used during the period from 1947 to 1951. These calibres are considered equivalent to Aurore-Villeret 120, Bulova 6AH, and FHF 120, although interchangeability data may vary across movement registers. The Bulova calibres feature design differences not found in the FHF calibres, suggesting the ebauches likely originated from Aurore-Villeret.
The A. Schild 1711 features the following functions:
- Manual Winding
- Mechanical Movement
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.080 x 260 x 7.5 mm | GR3474 | Manual | Buy mainspring |
| 1.35 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.30 x 0.080 x 240 x 7.0 mm | GR3202 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
