Return To ShopWatch Database

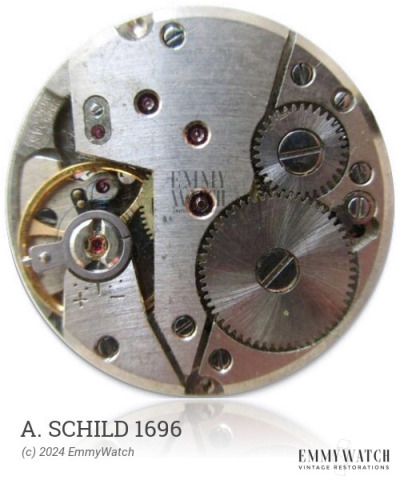

A. Schild 1696
(AS, A Schild)
Ligne: 9.75'''
Jewels: 6/15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 21.7 mm
Height: 3.4 mm
Hands: 1.20 x 0.60 mm
The A. Schild 1696 watch movement is a manual wind, sub second movement that was used around 1945. It shares the same designation as an earlier 5.25''' calibre movement, and there are no known differences between the A. Schild 1696, Felsa 186, and Felsa 245 movements.
The A. Schild 1696 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.090 x 240 x 7.5 mm | GR4851 | Manual | Buy mainspring |
| 1.10 x 0.090 x 250 x 8.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

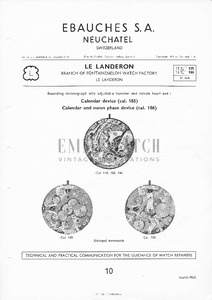

Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
