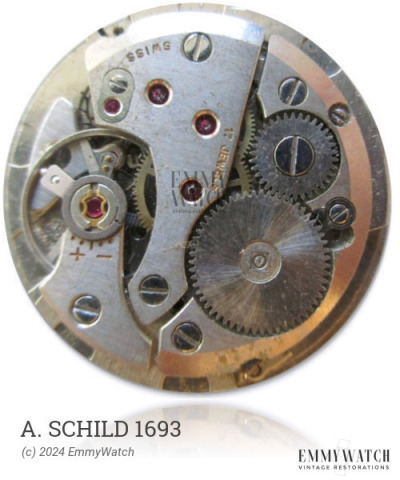

A. Schild 1693
(AS, A Schild)
Ligne: 12'''
Jewels: 1/17
Power Reserve: 38 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1970
Diameter: 27 mm
Height: 3.9 mm
Hands: 1.80 x 1.30 x 0.20 mm
Base: Ronda 135
The A. Schild 1693 watch movement, used around 1970, features a pin-lever escapement and a stem mechanism without a setting-lever spring. In late samples, the hairspring terminal is glued, and the strangely arranged train and hand gear are separately driven by the barrel. It incorporates the following functions: manual wind and sweep second.
The A. Schild 1693 features the following functions:
- Manual Winding
- Pin lever
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.120 x 320 x 9.5 mm | GR3728 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
