A. Schild 1686
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 48 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.21 mm

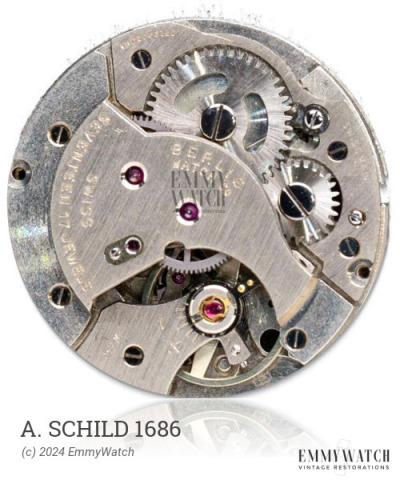

The A. Schild 1686 is a manual wind mechanical watch movement with a sweep seconds function. It features an indirectly driven minute hand which allows for a large balance and low profile. This movement was commonly used around 1965.
The A. Schild 1686 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5359 | Ordinary/None | Buy staff |
| 5360 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.15 x 0.115 x 360 x 10.0 mm | GR2806 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
