A. Schild 1656
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1942-
Diameter: 26.3 mm
Height: 5.85 mm
Hands: 1.50 x 0.90 x 0.20 mm

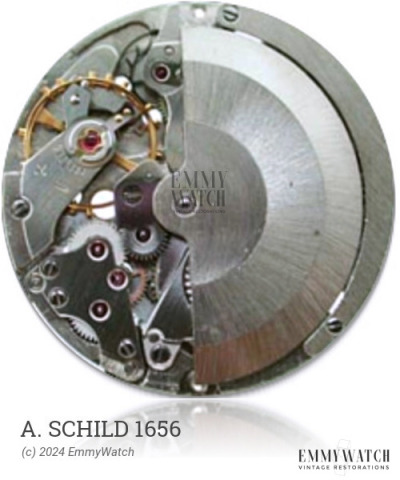

The A. Schild 1656 watch movement is part of the first calibre family with bidirectional rotor winding. It offers optional Reed's regulator and shares similarities with the 690, 691, 696, and 698 models. The movement features automatic winding and includes sub-seconds functionality. It has been in use since 1942.
The A. Schild 1656 features the following functions:
- Automatic Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.110 x 340 x 10.0 mm | GR3984X | Auto | Buy mainspring |
| 1.40 x 0.110 x 350 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
