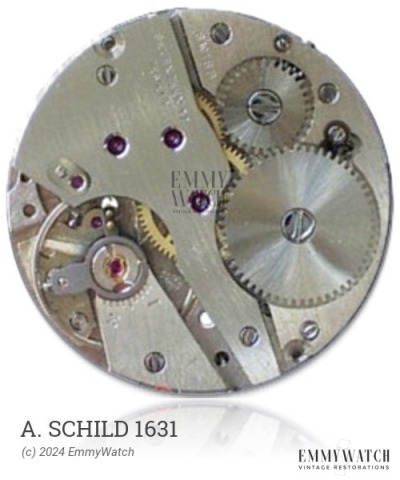

A. Schild 1631
(AS, A Schild)
Ligne: 17'''
Jewels: 15/16
Lift Angle: 44°
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 38.2 mm
Height: 4.0 mm
Hands: 1.85 x 1.00 / 0.20 mm
The A. Schild 1631 is an open face calibre watch movement with a Breguet hairspring and an optional Reed's regulator. It features stem winding and setting, as well as a sub-second function. The movement was commonly used around the period of 1950.
The A. Schild 1631 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.180 x 460 x 14.5 mm | GR3846 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
