A. Schild 1618
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17
Power Reserve: 53 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 26 mm
Height: 3.95 mm
Hands: 1.50 x 0.80 / 0.21 mm

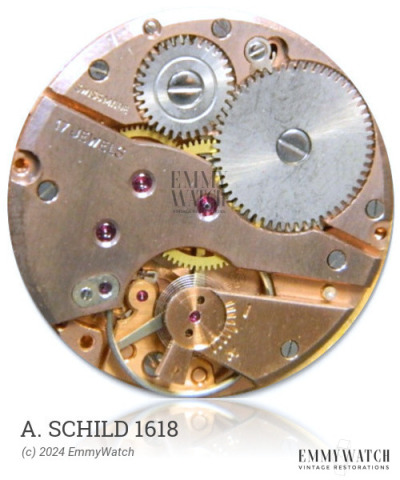

The A. Schild 1618 is a manual wind watch movement with sub second function that was likely used around 1945. It bears similarities to other movements within the ETA 12 series, such as the 1261, 1265, 1267, 1269, 1271, 1273, and 1277, though specific differences between these movements are not known.
The A. Schild 1618 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.110 x 290 x 9.5 mm | Manual | Buy mainspring | |
| 1.80 x 0.105 x 300 x 9.0 mm | GR5266 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
