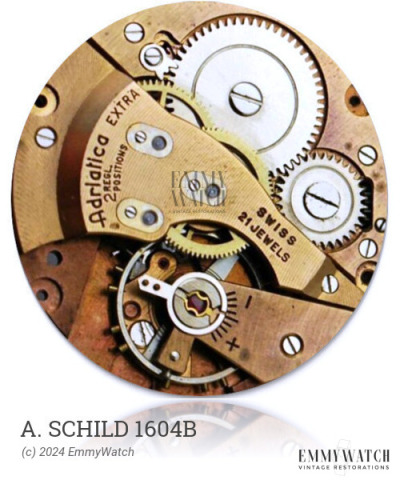

A. Schild 1604B
(AS, A Schild)
Ligne: 12'''
Jewels: 0/1/17/21
Lift Angle: 42°
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 27 mm
Height: 4.0 mm
Hands: 1.80 x 1.30 / 0.18 mm
The A. Schild 1604B watch movement features a pin-lever escapement and an indirectly driven minute hand, enabling the incorporation of a large balance and a low profile design. Additionally, the movement offers optional shock protection through elastical spiral balance spokes. It functions as a manual wind movement with sub-second functionality, and provides the option of not having a second hand. The A. Schild 1604B movement was commonly used during the approximate period of 1965.
The A. Schild 1604B features the following functions:
- Manual Winding
- Option: no second
- Pin lever
- Sub Second
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4883 | Ordinary/None | Buy staff |
| 5064 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.145 x 380 x 12.0 mm | GR3530 | Manual | Buy mainspring |
| 1.35 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring | |
| 1.35 x 0.135 x 340 x 11.0 mm | GR3518 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
