A. Schild 1573
(AS, A Schild)
Ligne: 8.75'''
Jewels: 17
Lift Angle: 50°
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 19.75 mm
Height: 4.85 mm
Hands: 1.20 x 0.80 x 0.22 mm

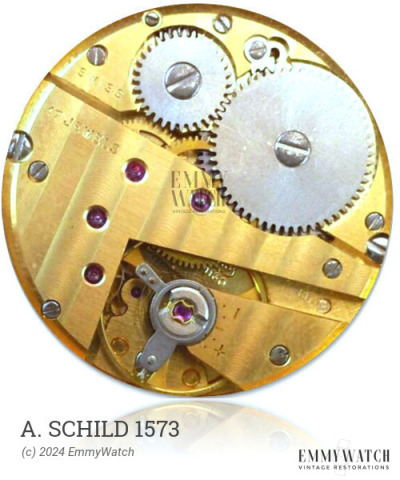

The A. Schild 1573 watch movement is a manually-wound mechanical movement with a pin-lever escapement. It features an imitation of balance screws, a ratchet on the dial side, and a crown mechanism with a rocker bar. The dial side is marked with the signature of the base calibre EB 1333. The movement is equipped with a sweep second function, making it suitable for timekeeping accuracy. The A. Schild 1573 movement was commonly used around the year 1955.
The A. Schild 1573 features the following functions:
- Manual Winding
- Pin lever
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 225 x 8.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.090 x 240 x 7.5 mm | GR4462 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
