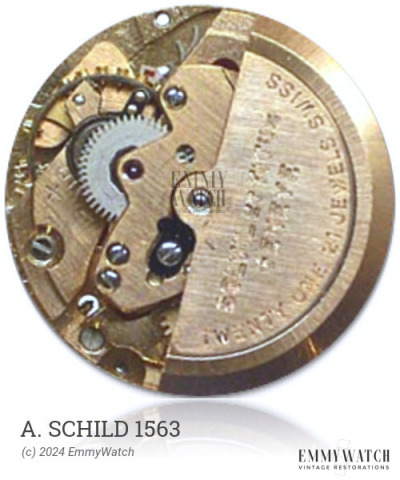

A. Schild 1563
(AS, A Schild)
Ligne: 12.5'''
Jewels: 23/25
Lift Angle: 48°
Power Reserve: 44 hrs
Frequency: 19800 vph
Type: Automatic
Period used: 1970-1974
Diameter: 28 mm
Height: 5.9 mm
Hands: 1.40 x 0.80 mm
The A. Schild 1563 watch movement was produced from 1970 to 1974 with a total of 162,000 units. It features an excenter winding mechanism and 25 jewels with ruby-rollers. The movement also includes a double excenter regulator for curb pins and stud carrier, as well as a Breguet hairspring and adjustment screws on the balance spokes. Additionally, it offers automatic winding, a sweep second hand, a date function that can be set by changing the time from 23:45 to 24:00, and a hack feature.
The A. Schild 1563 features the following functions:
- Automatic Winding
- Date: set by changing 23:45-24:00h
- Hack feature
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.120 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
