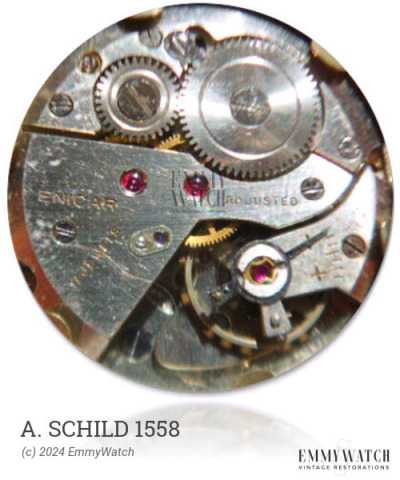

A. Schild 1558
(AS, A Schild)
Ligne: 19'''
Jewels: 15/16
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1913
Diameter: 42.95 mm
Height: 6.55 mm
Hands: 1.80 x 1.20 / 0.28 mm
The A. Schild 1558 watch movement is an open face calibre with a bimetallic screw balance featuring 4 adjustment screws, and a Breguet hairspring. It is known solely from literature as a chronometer from approximately 1913. The movement offers the functions of stem winding and pin setting, as well as a sub second display.
The A. Schild 1558 features the following functions:
- Stem wind and pin set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
