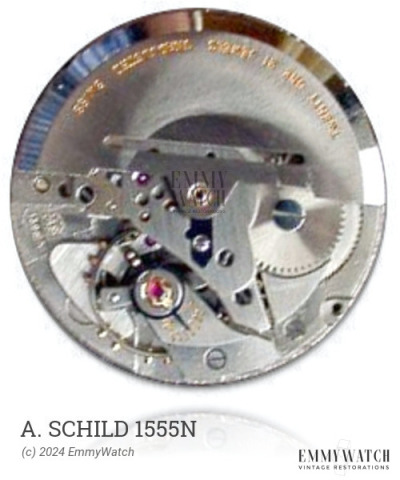

A. Schild 1555N
(AS, A Schild)
Ligne: 13'''
Jewels: 19
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1964-
Diameter: 29.4 mm
Height: 6.35 mm
Hands: 1.52 x 1.00 x 0.18 mm
The A. Schild 1555N watch movement is an automatic movement with a sweep second hand. It features a day function that can be set by changing the time between 22:00 and 0:45 hours. The date can be quickly set by repeatedly pulling the crown. This movement has been used since 1964, and the differences between the 4111 to 4113 variants are not known.
The A. Schild 1555N features the following functions:
- Automatic Winding
- Date: quickset by repeated pulling the crown
- Day: set by changing 22-0:45h
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

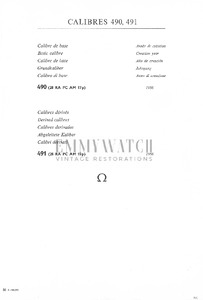

Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CROWN WHEEL RING | 057-10 | 422/702 | Buy part |
| ROLLER 180X75X33 | 82S/193R | Buy part | |
| STAFF | 043-19 | 723/1248 | Buy part |
