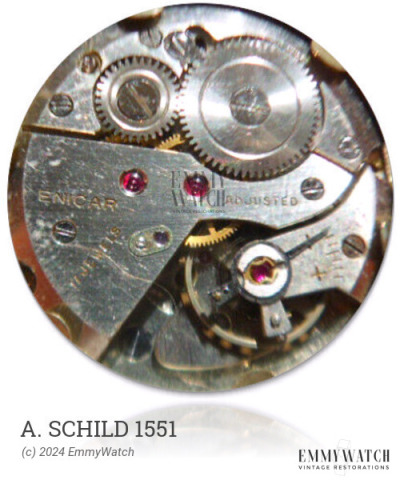

A. Schild 1551
(AS, A Schild)
Ligne: 5.75 x 8.5'''
Jewels: 15
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Size: 12.8 x 19.5 mm
Height: 3.6 mm
Hands: 1.20 x 0.60 mm
The A. Schild 1551 is a manual wind watch movement that was likely created around 1950. It shares many parts with the Eterna 1057 movement. While there are differences between various movements such as 761-764, 773, 838-841, 846, 862, 882, 1030, and 1040, the specifics of these differences are unknown. It is plausible that these different movement numbers were assigned based on variations in base plates, bridge layouts, and lever bridges.
The A. Schild 1551 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 280 x 8.0 mm | GR3204 | Manual | Buy mainspring |
| 1.30 x 0.080 x 260 x 7.5 mm | GR3203 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
