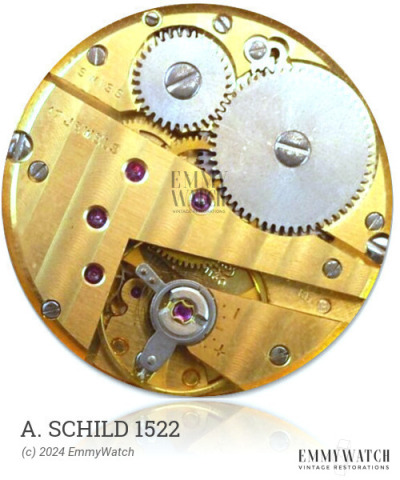

A. Schild 1522
(AS, A Schild)
Ligne: 8.75'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 19.7 mm
Height: 3.45 mm
Hands: 1.20 x 0.60 / 0.22 mm
The A. Schild 1522 watch movement is a manual wind movement with sub-second functionality. Its period of use dates back to approximately 1950. While the differences between the 2325-2330 and 2335-2339 versions are not fully known, it is likely that they simply feature different bridge designs.
The A. Schild 1522 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.090 x 250 x 8.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.085 x 260 x 7.5 mm | GR4455 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
