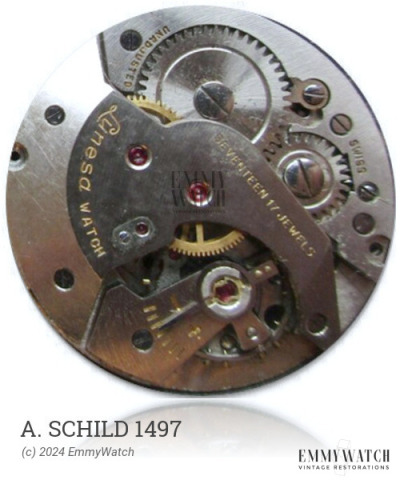

A. Schild 1497
(AS, A Schild)
Ligne: 8 x 11'''
Jewels: 15/17
Lift Angle: 46°
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 17.85 x 24.55 mm
Height: 3.5 mm
Hands: 1.10 x 0.60 / 0.15 mm
The A. Schild 1497 is a manual wind mechanical watch movement that features a sub second function. It is a vintage movement that was predominantly used in watch production around 1945.
The A. Schild 1497 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.105 x 320 x 9.5 mm | GR2626DBH | DBH | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BARREL ARBOR | 195/LEC 424 | Buy part | |
| CENTER WHEEL | 201/LEC 438 | 201/LEC 438 | Buy part |
| CLICKSPRING | 430/LEC 424 | Buy part | |
| MAINSPRING 1.10-.105-320 9,5 | MSS-WC4 | GR 2626-DBH | Buy part |
| MAINSPRING TEND | 770/LEC 424 | 770/LEC 424 | Buy part |
| STAFF | 100/466 | 723/LEC 438 | Buy part |
