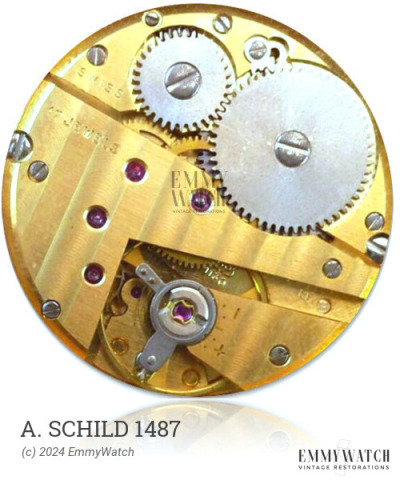

A. Schild 1487
(AS, A Schild)
Ligne: 7.75'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1959-1975
Diameter: 17.5 mm
Height: 2.85 mm
Hands: 1.20 x 0.60 mm
The A. Schild 1487 is a manual wind watch movement that was used from 1959 to 1975. It features an indirectly driven minute hand, allowing for a larger balance. Early samples of the movement utilized a cap jewel plate, while late samples incorporated the Girocap or Lubrifix combined setting for the escapement wheel.
The A. Schild 1487 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4436 | Ordinary/None | Buy staff |
| 4511 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.085 x 230 x 7.5 mm | Manual | Buy mainspring | |
| 1.20 x 0.085 x 240 x 7.0 mm | GR2885 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
Documents
Parts Listing
