A. Schild 1475
(AS, A Schild)
Ligne: 8.75'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 19.7 mm
Height: 3.3 mm
Hands: 1.20 x 0.60 / 0.18 mm
Base: Felsa 351

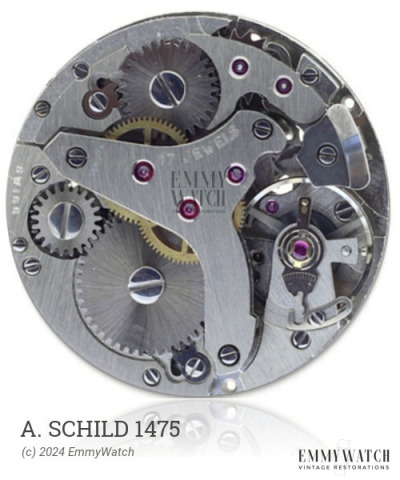

The A. Schild 1475 watch movement is a manual wind movement that features a sub-second function. It was produced and commonly used around the year 1945.
The A. Schild 1475 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.075 x 240 x 7.0 mm | GR3590 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
