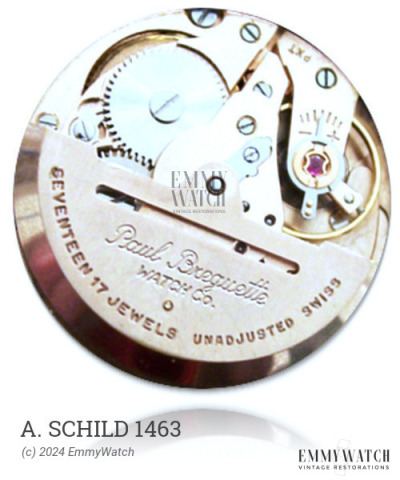

A. Schild 1463
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/20
Frequency: 18000 vph
Type: Automatic
Period used: ~1950
Diameter: 25.6 mm
Hands: 1.40 x 0.70 mm
The A. Schild 1463 watch movement is an automatic (bumper) movement that features a sweep seconds hand. It is similar to the 172 movement, although the specific differences between the two are not known. The 162 movement was produced around the 1950s.
The A. Schild 1463 features the following functions:
- Automatic (bumper)
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2060 | Ordinary/None | Buy staff |
| 3073 | Incabloc | Buy staff |
| 5 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 8.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

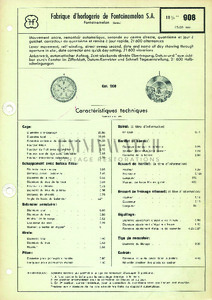

Documents
Parts Listing
