A. Schild 1432
(AS, A Schild)
Jewels: 7
Frequency: 18000 vph
Type: Manual Wind
Period used: 1915-1917
Diameter: 27.94 mm

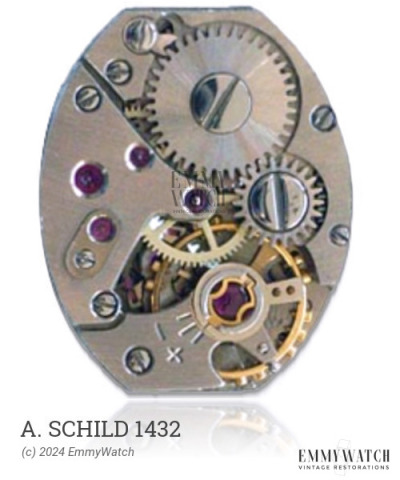

The A. Schild 1432 watch movement, produced from 1915 to 1917, encompassed a total of 130,000 units. This timepiece featured a hunter calibre, specifically model 4, and was equipped with a bimetallic screw balance along with a Breguet hairspring. Incorporating a negative stem mechanism, the A. Schild 1432 shared similarities with the model 2 but possessed a smaller base plate. Further information regarding the distinctions between models 2, 4, and 6 remains undisclosed. Function-wise, the A. Schild 1432 facilitated stem winding and setting and featured a sub-second display.
The A. Schild 1432 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
