A. Schild 1392
(AS, A Schild)
Ligne: 10.5'''
Jewels: 1/5/17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1966-1967
Diameter: 23.3 mm
Height: 4.7 mm
Hands: 1.50 x 0.70 x 0.18 mm

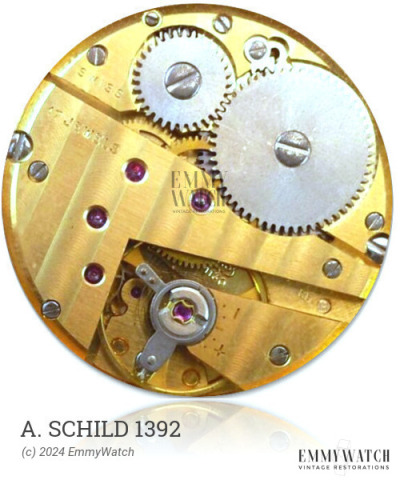

The A. Schild 1392 watch movement, manufactured during the period of 1966-1967, features a pin-lever escapement. It is a manual wind movement with a sweep second hand. The date function is set by changing 21:30-24h.
The A. Schild 1392 features the following functions:
- Date: set by changing 21:30-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.120 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
