A. Schild 1387
(AS, A Schild)
Ligne: 10.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 23.7 mm
Height: 3.5 mm
Hands: 1.30 x 0.80 / 0.20 mm
Base: Fontainemelon 71

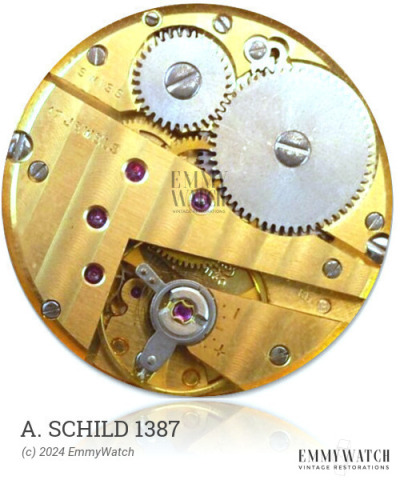

The A. Schild 1387 watch movement is a mechanical movement with manual winding. It features a sub second function and was commonly used around 1965. While the differences between the A. Schild 1387 and the 814 are not known, this summary provides a factual overview of the key specifications of the A. Schild 1387 movement.
The A. Schild 1387 features the following functions:
- Manual Winding
- Mechanical Movement
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1003 | Ordinary/None | Buy staff |
| 5098 | Ordinary/None | Buy staff |
| 5099 | Incabloc | Buy staff |
| 5432 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.100 x 320 x 9.0 mm | GR3665 | Manual | Buy mainspring |
| 1.30 x 0.065 x 260 x 7.0 mm | GR3181 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE INCA | 721/1697 | W/SCREW/FF 81 | Buy part |
| BARREL ARBOR | 195/1170 | Buy part | |
| ESCAPE WHEEL, S/C | 703/212 | 703/FEL 81 | Buy part |
| GIB/BOLT INCA SHOCK .15 THICK | 400/774 | 180.15/INCA #12 | Buy part |
| JEWEL, INCA BALANCE 135X50X09 | 400/11 | 111.09/INCA#8 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| MAINSPRING 1.40-.10-320 9 | MS-511M | GR 3665 | Buy part |
| SET BRIDGE | 445/272 | 445/FF 71 | Buy part |
| SHOCK SETTING, COMPLETE LOWER | 400/1671 | 103.20.9/INC | Buy part |
| SHOCK SPRING, LOWER 223 X 155 | 400/811 | 173.03/INC | Buy part |
| SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
| STAFF, INCA | 100/2360 | Buy part | |
| STEM | 200/1607F | 200/FF 81 | Buy part |
| UPPER UNIT | 103.21.312.9 | Buy part |
