A. Schild 1337
(AS, A Schild)
Jewels: 17
Power Reserve: 50 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1952-1954
Size: 17.55 x 24.9 mm
Height: 3.75 mm
Hands: 1.12 x 0.64 / 0.20 mm

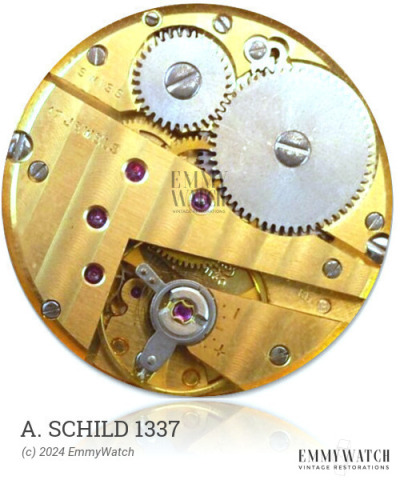

The A. Schild 1337 watch movement, also known as model 5, was manufactured from 1952 to 1954 with a production volume of 11,000 units. It features a manual wind mechanism and a sub second function. The movement is equipped with a Breguet hairspring and a lever with cap jewels. Additionally, it incorporates shock protection for enhanced durability.
The A. Schild 1337 features the following functions:
- Manual Winding
- Shock Protection
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
