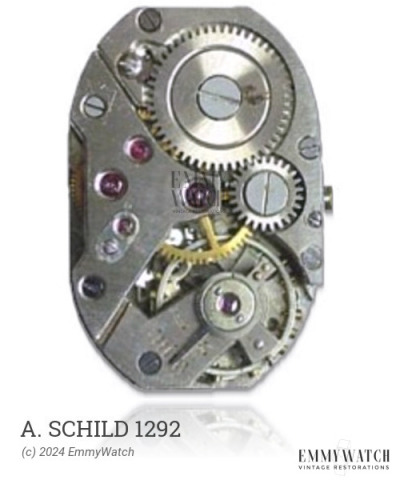

A. Schild 1292
(AS, A Schild)
Ligne: 7.75'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 44 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1970
Diameter: 17.5 mm
Height: 3.3 mm
Hands: 1.20 x 0.70 x 0.20 mm
Base: ETA 2540
The A. Schild 1292 watch movement is a manual wind movement that features sweep seconds, an adjustable stud holder, shock protection, and a sweep seconds hand. This movement was commonly used in watches during the period of approximately 1970.
The A. Schild 1292 features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 245 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
