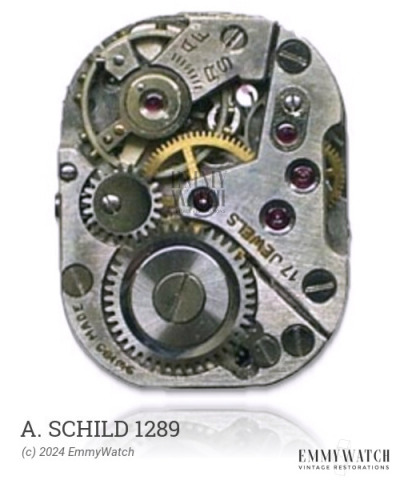

A. Schild 1289
(AS, A Schild)
Jewels: 17
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1895-1899
Diameter: 43.1 mm
Height: 6.65 mm
Hands: 1.65 x 0.92 / 0.25 mm
The A. Schild 1289 watch movement, produced from 1895 to 1899 with approximately 4000 units, features an open face calibre, known as model 7. It is the first 16s model 7 with a bimetallic screw balance and Breguet hairspring. The movement incorporates a negative stem mechanism for switching between winding and setting functions, and lever position setting. It also includes a sub second.
The A. Schild 1289 features the following functions:
- Stem wind, switching by crown or lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.64 x 0.190 x 560 x 16.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
