A. Schild 1267
(AS, A Schild)
Ligne: 13.5'''
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1953
Diameter: 30.6 mm
Height: 4.0 mm
Hands: 1.45 x 0.80 / 0.18 mm

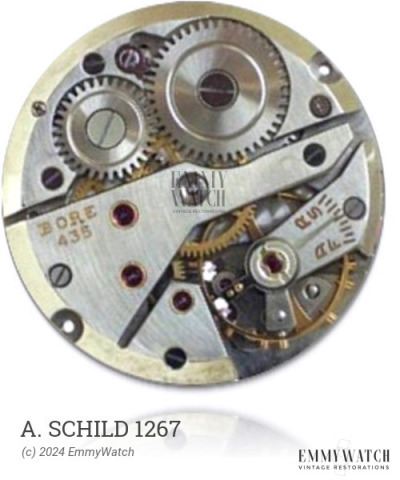

The A. Schild 1267 watch movement is a manual wind movement with a sub second function. It was produced around 1953. Not much information is available regarding the specific differences between the Revue 81, A. Schild 1267, and MSR X3 movements. The movement features a cam disc regulator, although further details are unknown.
The A. Schild 1267 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.135 x 12.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
