A. Schild 1263
(AS, A Schild)
Ligne: 11.5'''
Jewels: 1
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 3.9 mm
Hands: 1.80 x 1.30 mm

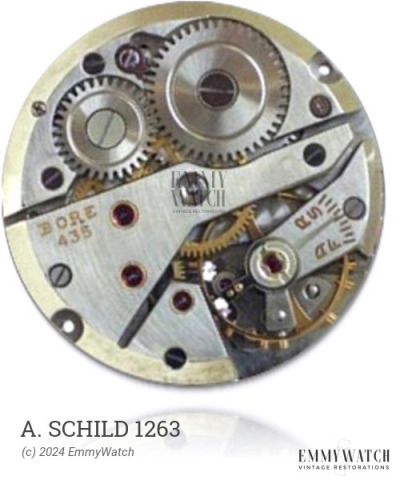

The A. Schild 1263 watch movement features a pin-lever escapement and a peculiar arrangement where the train and hand gear are driven separately by the barrel. This movement offers manual winding capabilities and includes functions such as sweep seconds and pin lever. It was commonly used around the year 1965.
The A. Schild 1263 features the following functions:
- Manual Winding
- Pin lever
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.105 x 300 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
