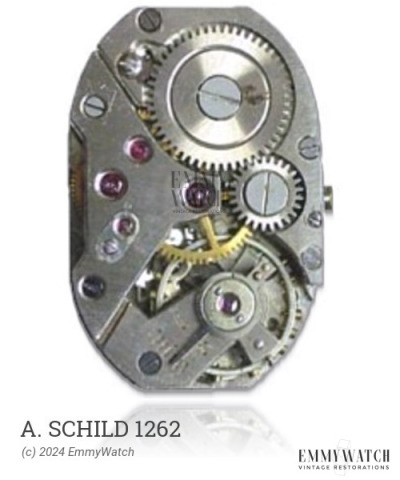

A. Schild 1262
(AS, A Schild)
Ligne: 10.5'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 23.7 mm
Height: 3.5 mm
Hands: 1.30 x 0.80 / 0.20 mm
The A. Schild 1262 is a manual wind watch movement that features sub-second functionality. Though detailed differences between the 81 and 814 models are not widely known, the 814 movement was used during the approximate time period of 1965.
The A. Schild 1262 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
