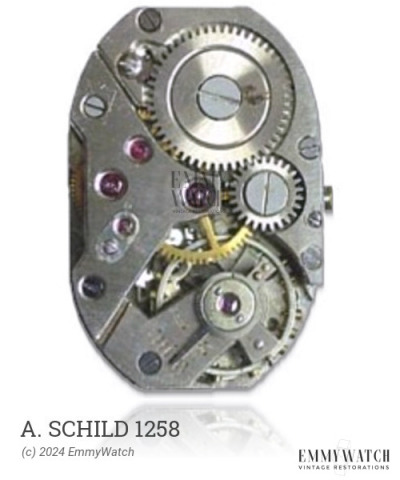

A. Schild 1258
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 25.6 mm
Height: 5.1 mm
Hands: 1.30 x 0.90 x 0.21 mm
Base: Fontainemelon 74
The A. Schild 1258 is a manual wind mechanical watch movement that was utilized in watches produced around the 1960s. It features various bridge shapes and incorporates several notable functions such as sweep seconds, a date display, and manual winding capabilities.
The A. Schild 1258 features the following functions:
- Date
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| FOURTH WHEEL, SS HT 6.58 | 227/667 | Buy part | |
| PALLET ARBOR | 714/45 | /FF 74-4 | Buy part |
