A. Schild 1251
(AS, A Schild)
Ligne: 17'''
Jewels: 15
Lift Angle: 36°
Frequency: 18000 vph
Type: Manual Wind
Period used: 1949-
Diameter: 39.1 mm
Height: 4.9 mm
Hands: 1.90 x 1.25 / 0.21 mm

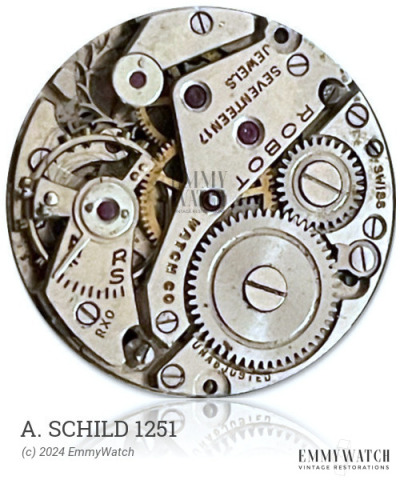

The A. Schild 1251 is a mechanical watch movement that was produced by Omega during the period of 1949 onwards. It is an open face calibre movement with a Breguet hairspring. This movement is stem wind and set, and also features a sub second function. The A. Schild 1251 was derived from the Omega 38.5L T1 movement, which was renamed to Omega 160 during production.
The A. Schild 1251 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.10 x 0.180 x 440 x 14.5 mm | GR6058 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BARREL | 182/807 | 1200/OME 161 | Buy part |
| BARREL ARBOR | 195/844 | 1204/OME 160 | Buy part |
| CENTER WHEEL | 201/884 | 1224/OME 161 | Buy part |
| CLICK | 425/349 | 1104/OME 160 | Buy part |
| CLICKSPRING | 430/874 | 1105/OME 150 | Buy part |
| ESCAPE WHEEL, S/S | 705/903 | 1305/OME 160 | Buy part |
| FOURTH WHEEL, W/SECOND | 224/537 | 1243/OME 161 | Buy part |
| JEWEL, UPPER BALANCE CAP | 311/305 | 1329/OME 160 | Buy part |
| MAINSPRING 12-5-17.5 | 770/19 | 1208/OME 160 | Buy part |
| PALLET ARBOR | 714/49 | 1312/OME 150 | Buy part |
| PALLET FORK & ARBOR | 710/1021 | 1316/OME 161 | Buy part |
| RATCHET WHEEL | 415/770 | 1100/OME 160 | Buy part |
| ROLLER | 82S/335R | 82S/335R | Buy part |
| SCREW, CASE | 5101/OME 161 | 2708/OME 161 | Buy part |
| SCREW, DIAL SIDE | 5750/219 | 2167/OME 140 | Buy part |
| SCREW, RATCHET WHEEL | 5415/443 | 2148/OME 160 | Buy part |
| STAFF | 723/403 | 1321/OME 150 | Buy part |
| STAFF | 100/842 | 1321/OME 150 | Buy part |
| STEM | 401/217 | 1106/OME 150 | Buy part |
| STEM | 200/674F | Buy part | |
| THIRD WHEEL | 210/956 | 1240/OME 161 | Buy part |
| UP BALANCE CAP JEWEL LOCK | M/1695 | 1335/OME 160 | Buy part |
| WIND PINION | 1108/OME 161 | Buy part |
