A. Schild 1215
(AS, A Schild)
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1948
Diameter: 23.65 mm
Height: 4.1 mm
Hands: 1.32 x 0.72 / 0.20 mm

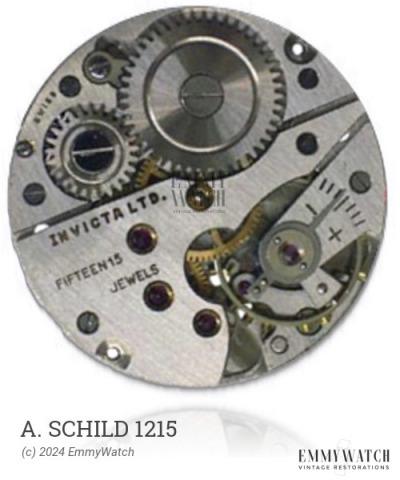

The A. Schild 1215 watch movement is a manual wind mechanical movement with a sub-second function. It was primarily used around 1948.
The A. Schild 1215 features the following functions:
- Manual Winding
- Mechanical Movement
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 773 | Ordinary/None | Buy staff |
| 3804 | Shock Resist | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
