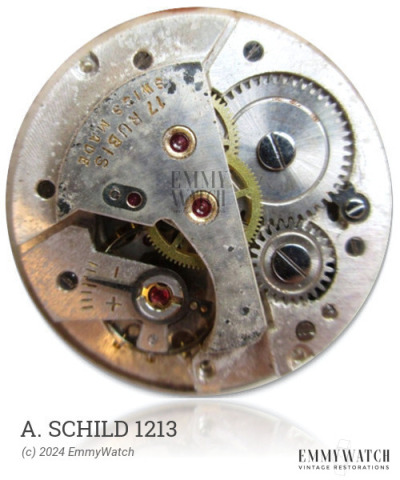

A. Schild 1213
(AS, A Schild)
Ligne: 10.5'''
Jewels: 1/15
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1975
Diameter: 23.9 mm
Height: 3.8 mm
Hands: 1.40 x 0.85 mm
The A. Schild 1213 watch movement is equipped with a pin-lever escapement and features an indirect minute, hand friction clutch on the barrel. This movement is almost equivalent to the Wurthner 10.5''' movement. It offers various functions including manual winding, a digital display option for minute and jumping hour, and an optional sub second function. The A. Schild 1213 movement was used during the period of approximately 1975.
The A. Schild 1213 features the following functions:
- Manual Winding
- Option: Digital display - minute, jumping hour
- Option: sub second
- Pin lever
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 321 | Ordinary/None | Buy staff |
| 322 | Ordinary/None | Buy staff |
| 342 | Incabloc | Buy staff |
| 3329 | Kif | Buy staff |
| 3330 | Kif | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.115 x 440 x 11.0 mm | GR3146 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
