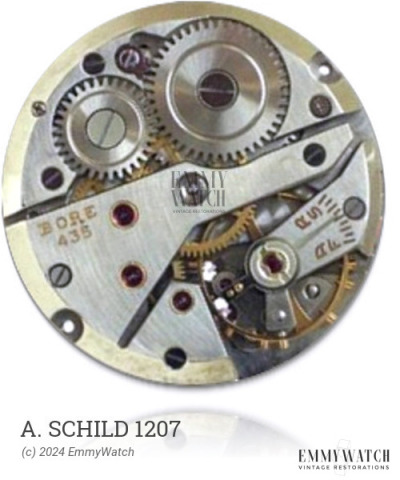

A. Schild 1207
(AS, A Schild)
Ligne: 8.75'''
Jewels: 7/15/17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1935-1967
Diameter: 19.7 mm
Height: 3.45 mm
Hands: 1.20 x 0.65 / 0.18 mm
The A. Schild 1207 is a manual wind watch movement with a sub-second function. It was produced from 1935 to 1967, with an estimated quantity of under 16,000,000 units. Variations in balances and calibre designations exist within this movement family, although the specific differences are not known. Additionally, there are similar-looking calibres with a height of 3.0mm.
The A. Schild 1207 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
