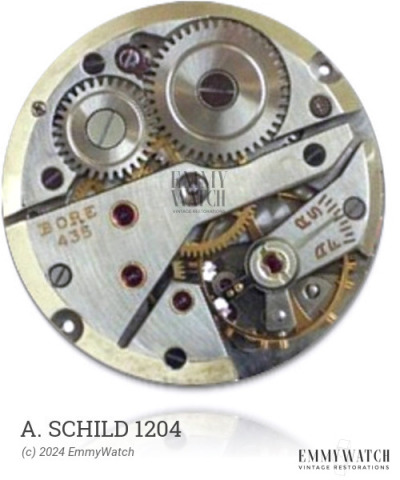

A. Schild 1204
(AS, A Schild)
Ligne: 12.5'''
Jewels: 17/21
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 28.3 mm
Height: 5.7 mm
Hands: 2.10 x 1.50 x 0.90 x 0.21 mm
The A. Schild 1204 watch movement features a common barrel for both the watch and alarm functions, as well as an indicator aperture specifically designed for the alarm feature. While distinctions between the A. Schild 1204 and 231 are unspecified, the movement incorporates manual-wind alarm, sweep second, and alarm function capabilities.
The A. Schild 1204 features the following functions:
- Alarm Complication
- Manual-wind alarm
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.130 x 380 x 12.0 mm | GR4566 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
