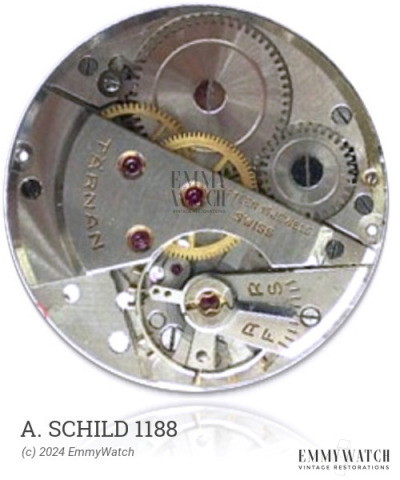

A. Schild 1188
(AS, A Schild)
Ligne: 16.5'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 37.2 mm
Height: 4.9 mm
Hands: 2.00 x 1.15 / 0.27 mm
The A. Schild 1188 is an open face calibre watch movement with varying bridge shapes. It is likely to feature a left handed ratchet-wheel screw. The differences between the 283, 291, 297, 309, 329, 333, 337, and 499 variations of this movement are not known. The A. Schild 1188 movement offers the functions of stem winding and setting, as well as a sub-second display. It was commonly used around the period of 1940.
The A. Schild 1188 features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.170 x 460 x 15.0 mm | Manual | Buy mainspring | |
| 1.90 x 0.170 x 460 x 14.0 mm | GR5608 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
