A. Schild 1158
(AS, A Schild)
Ligne: 5.75 x 8.5'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1960-1969
Size: 12.8 x 19.25 mm
Height: 3.6 mm
Hands: 1.00 x 0.55 mm

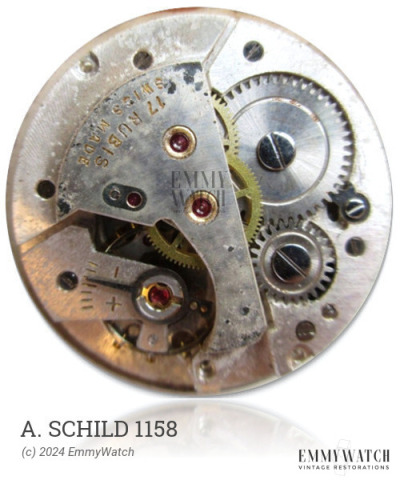

The A. Schild 1158 is a mechanical watch movement that was produced between 1960 and 1969, with a total of 477,393 units manufactured. It is a redesign of the Guba 63 movement and features manual winding functionality.
The A. Schild 1158 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.15 x 0.080 x 220 x 7.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
