A. Schild 1149
(AS, A Schild)
Ligne: 12'''
Jewels: 17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 27.25 mm
Height: 5.2 mm
Hands: 1.28 x 0.98 x 0.29 mm

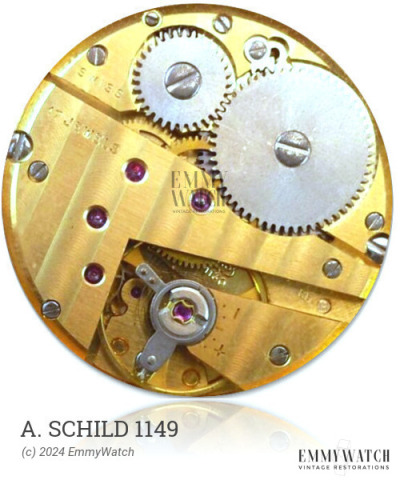

The A. Schild 1149 watch movement features an indirect second and minute function, with a ratchet located on the dial side. It utilizes a crown mechanism with a rocker bar, and is equipped mostly with Kif-Trior shock devices, occasionally using Kienzle shock devices. This manual wind movement also incorporates a sweep second function and a date function, which is set by changing the time from 22:30 to 24:00. The A. Schild 1149 movement was commonly used around the year 1965.
The A. Schild 1149 features the following functions:
- Date: set by changing 22:30-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.65 x 0.110 x 360 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
