A. Schild 1138
(AS, A Schild)
Ligne: 10.5'''
Jewels: 1/5/17
Lift Angle: 56°
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 23.3 mm
Height: 4.7 mm
Hands: 1.50 x 0.70 x 0.18 mm

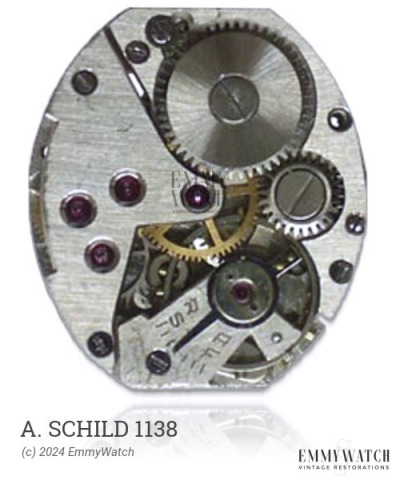

The A. Schild 1138 is a mechanical watch movement with a pin-lever escapement. It is a manual wind movement that features sweep seconds and a date function. The date is set by changing the time to 21:30-24h. The movement also incorporates a pin lever mechanism and a calendar function. It was predominantly used in watches produced around the 1970s.
The A. Schild 1138 features the following functions:
- Calendar
- Date: set by changing 21:30-24h
- Manual Winding
- Pin lever
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.120 x 320 x 9.5 mm | GR41761 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

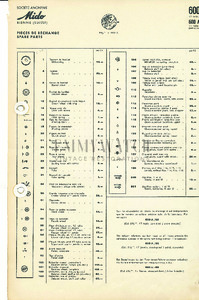

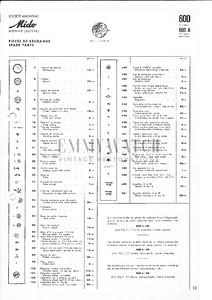

Parts Listing
