A. Schild 1121
(AS, A Schild)
Ligne: 10.5'''
Jewels: 17
Power Reserve: 53 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 23.7 mm
Height: 3.95 mm
Hands: 1.50 x 0.80 / 0.21 mm

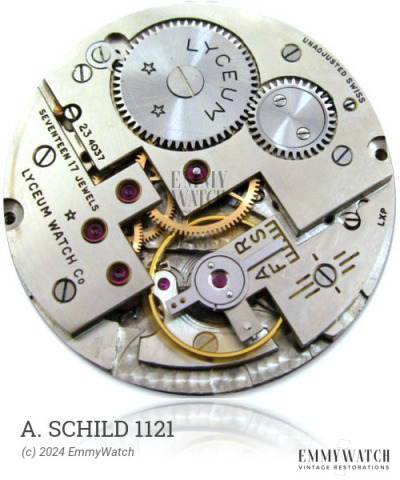

The A. Schild 1121 is a mechanical watch movement that shares similarities with the 1260, 1264, 1266, 1268, 1270, 1272, and 1276 movements. It features manual wind functionality and includes a sub second function. The movement was commonly used around 1955.
The A. Schild 1121 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.110 x 290 x 9.5 mm | Manual | Buy mainspring | |
| 1.80 x 0.105 x 300 x 9.0 mm | GR5266 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
