A. Schild 1089
(AS, A Schild)
Ligne: 11.5'''
Jewels: 7/15/17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 25.6 mm
Height: 3.8 mm
Hands: 1.30 x 0.70 / 0.22 mm

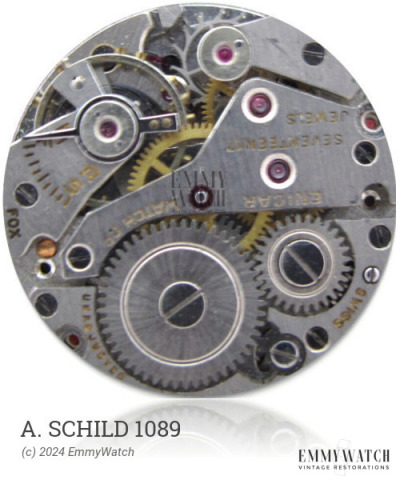

The A. Schild 1089 is a mechanical watch movement that was likely in use around 1945. It is a manual wind movement with a sub-second function. It shares similarities with the A. Schild 1265 movement, but the specific differences between these two movements are not known. The bridge layouts of the A. Schild 1089 movement may differ from other watch movements, although further details are not provided.
The A. Schild 1089 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 300 x 9.0 mm | GR4879 | Manual | Buy mainspring |
| 1.70 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.70 x 0.105 x 280 x 8.5 mm | GR4894 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
