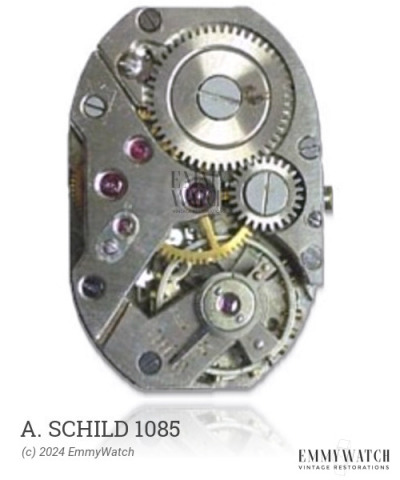

A. Schild 1085
(AS, A Schild)
Ligne: 9.75'''
Jewels: 15
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 22 mm
Height: 3.75 mm
Hands: 1.31 x 0.72 / 0.15 mm
The A. Schild 1085 is a manual wind watch movement with sub-second functionality. It features an ingenious design that incorporates a single part to replace the setting-lever spring, yoke, and yoke spring. The movement was produced around 1945.
The A. Schild 1085 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2414 | Ordinary/None | Buy staff |
| 3708 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.100 x 250 x 8.5 mm | Manual | Buy mainspring | |
| 1.25 x 0.100 x 260 x 8.0 mm | GR3108 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE 1/83 | 721/1167 | 3568 | Buy part |
| MAINSPRING 1.25-.10-260 8 | MS-3511H | GR 3108 | Buy part |
| STAFF, 3.20=HT | 100/376 | Buy part | |
| STEM | 200/395F | Buy part |
