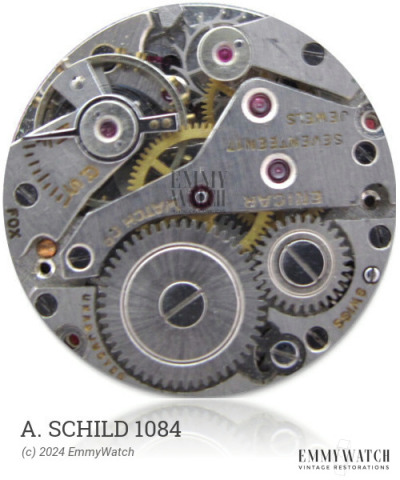

A. Schild 1084
(AS, A Schild)
Ligne: 18.5'''
Jewels: 15
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 41.6 mm
Height: 6.5 mm
Hands: 2.00 x 1.15 / 0.26 mm
The A. Schild 1084 watch movement is an open face calibre with optional Breguet hairspring and varying bridge shapes. It probably features a left-handed ratchet-wheel screw. The Unitas 429, 441, 457, 459, and 465 share similarities, likely attributed to catalog designations for varying bridge shapes. The movement includes functions such as stem wind and set, sub second, and was used around the year 1945.
The A. Schild 1084 features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.50 x 0.200 x 500 x 17.0 mm | GR6703 | Manual | Buy mainspring |
| 2.50 x 0.200 x 460 x 16.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
