A. Schild 1080
(AS, A Schild)
Ligne: 11.5'''
Jewels: 15/17/19/21
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 26 mm
Height: 4.15 mm
Hands: 1.50 x 0.90 x 0.21 mm

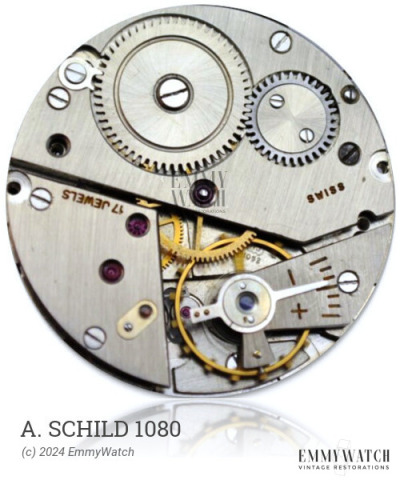

The A. Schild 1080 watch movement is a mechanical movement that was introduced around 1955. It is a manual wind movement with sweep second functionality. It is part of a series of movements including the 1081, 1083, 1085, 1087, 1089, 1095, 1097, 1099, 1141, 1143, 1145, 1147, 1149, 1155, 1157, 1175, 1177, 1179, 1181, 1183, and 1287, however, the specific differences between these movements are not currently known.
The A. Schild 1080 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.110 x 290 x 9.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.105 x 300 x 9.0 mm | GR4134 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
