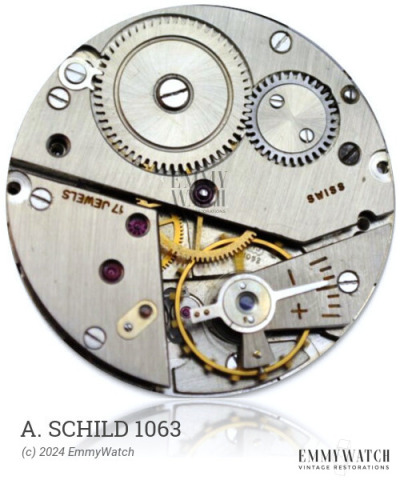

A. Schild 1063
(AS, A Schild)
Ligne: 12.75'''
Jewels: 17/21
Power Reserve: 41 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1970-1977
Diameter: 28.8 mm
Height: 4.3 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: Puw 564
The A. Schild 1063 is a manual wind watch movement with a sweep second hand. It features a day function that is set by changing the time between 17:30 and 24:00 hours. The date can be quickset by repeatedly pushing the crown. This movement was used during the period of 1970-1977.
The A. Schild 1063 features the following functions:
- Date: quickset by repeated pushing the crown
- Day: set by changing 17:30-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
