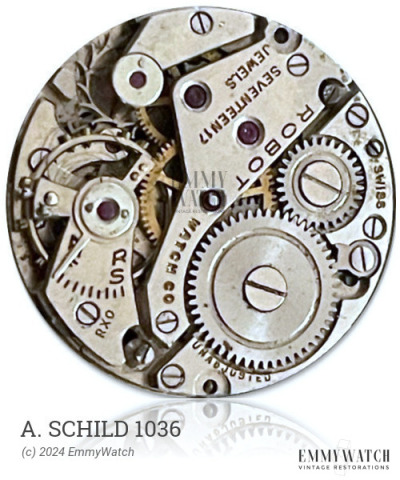

A. Schild 1036
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17
Lift Angle: 54°
Power Reserve: 50 hrs
Frequency: 28800 vph
Type: Manual Wind
Period used: ~1975
Diameter: 26 mm
Height: 4.75 mm
Hands: 1.50 x 0.90 x 0.21 mm
The A. Schild 1036 watch movement features an indirectly driven minute function, which enables a large balance and a low-profile design. Similarities and differences with its predecessor, the A. Schild 2164, are not disclosed. In terms of functionality, the movement includes a manual wind mechanism, sweep second function, day display with quickset and options for 1 or 2 languages, date display with quickset, hack feature, stop seconds function, and day and date display. This movement was typically utilized during the approximate period of 1975.
The A. Schild 1036 features the following functions:
- Date: quickset
- Day and Date Display
- Day: quickset, 1 or 2 languages
- Hack feature
- Manual Winding
- Stop Seconds Function
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.090 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
