A. Schild 1030
(AS, A Schild)
Ligne: 6.5 x 11'''
Jewels: 15/16
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Size: 14.8 x 25 mm
Height: 3.5 mm
Hands: 1.10 x 0.65 mm

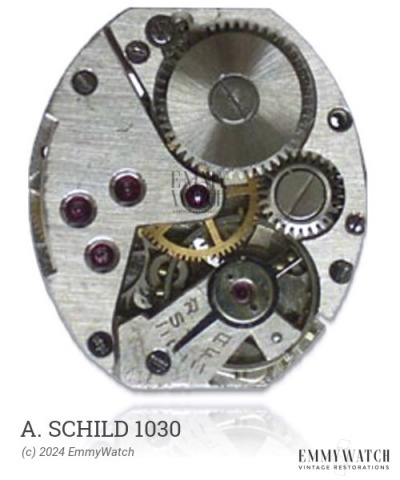

The A. Schild 1030 watch movement features a bimetallic screw balance and offers the option of a Breguet hairspring. It is a manual wind movement that was commonly used around 1925.
The A. Schild 1030 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.20 x 0.090 x 240 x 7.5 mm | GR2894 | Manual | Buy mainspring |
| 1.20 x 0.085 x 240 x 7.0 mm | GR2885 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
