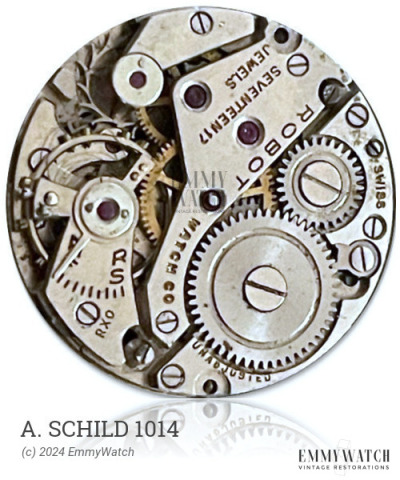

Return To ShopThe A. Schild 1014 watch movement is an open face calibre featuring a bimetallic screw balance. It incorporates a very early two-section regulator allowing for coarse and fine adjustment. The ratchet is positioned on the dial side, with the ability to click-unlock from the rear side through a marked screw head. The crown mechanism employs a rocker bar, and a setting pin is fixed in the movement by a screw. The movement offers functions such as stem winding and pin setting, as well as a sub-second hand. The A. Schild 1014 movement was used during the approximate period of 1909.
The A. Schild 1014 features the following functions:
Ronda Reference # | Shock System | Buy |
---|
Dimensions | GR Reference # | End Type | Buy |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|
